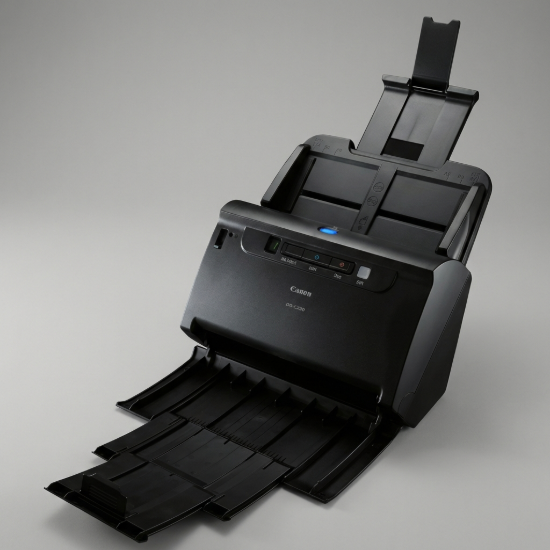

Canon DR C230

Specifications in detail

• Type
  Desktop Type Sheet Fed Scanner
• Scanning sensor unit
  CMOS CIS 1 Line Sensor
• Optical resolution
  600dpi
• Light source
  RGB LED
• Scanning side
  Front / Back / Duplex
• Interface
  High speed USB 2.0
• Dimensions (W x D x H)
  Trays Closed: 291 x 253 x 231 mm
  Trays Opened: 291 x 603 x 363 mm
• Weight
  Approx. 2.8kg
• Power requirements
  AC 100-240V (50/60Hz)
• Power Consumption
  Scanning: 19W or less
  Sleep mode: 1.4W or less
  Power turned off: 0.1W or less
• Operating Environment
  10 - 32.5 °C
  Humidity: 20 - 80% RH
• Environmental compliance
  RoHS

• Black and White
  30ppm / 60ipm
• Colour
  30ppm / 60ipm
• Output resolution
  150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
• Output mode
  Black & White/Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
• Suggested Daily Duty Cycle
  from 2,000 to 4,500 scans/day

• Width
  50.8 - 216mm
• Length
  54 - 356mm
• Thickness
  27 - 209g/m² (0.06 - 0.25mm)
• Long document mode
  3000mm Max
• Business card scanning
  Size: 50.8 x 85mm or larger
  Thickness: Less than 0.45 mm
• Plastic card scanning
  Size: 53.9 x 85.5mm
  Thickness: 0.76mm (Embossed Card up to 1.4mm thick is supported)
• Passport scanning
  Up to 4mm thick (via carrier sheet)
• Paper separation
  Retard Roller Method
• Feeder capacity
  60-sheets (80g/m²)
